HEPA Filter

Wetzel Technologies EPA and HEPA filters are used in clean rooms and clean benches in hospitals, the pharmaceutical industry, in microelectronics, in sensitive areas of food and beverage production as well as in the chemical industry wherever the highest demands are applied on clean air and sterility.
The filter frames of the Minipleat HEPA filters up to a depth of 93mm are made of extruded aluminium.
HEPA filters in 150mm, 220mm and 292mm depth can be manufactured in galvanized steel sheet, stainless steel sheet or with plastic frame.
The standard protection grids on both sides of HEPA panel filters are made of powder-coated expanded metal.
Each filter element is individually tested in accordance with applicable regulations and supplied with a test certificate on request.
Wetzel Technologies offers Minipleat - Hepa panel filters up to 93 mm overall depth, but also standard HEPA filters in 150mm, 220mm and 292mm overall depth as well as high volume HEPA filters with V - shaped arrangement of the Minipleat pleat packs.

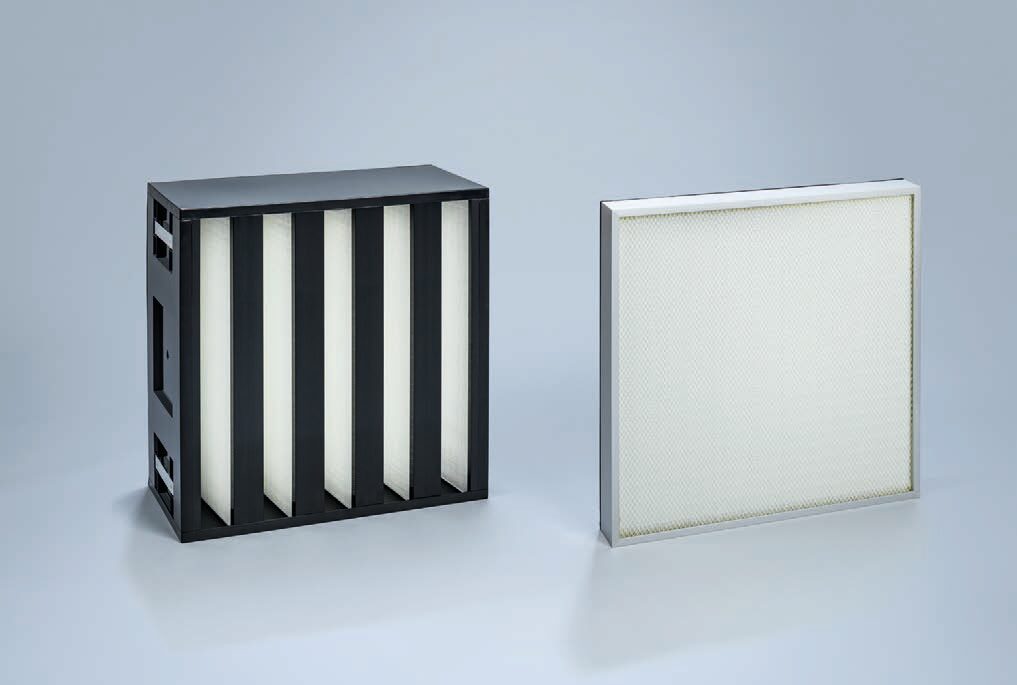

  • Schwebstofffilter
  • Schwebstofffilter
  • Schwebstofffilter

Alu Minipleat – HEPA Filter, foamed endless seal, depth 50mm

Article name Art code SAP Filter Class DIN 1822 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
Minipleat - HEPA panel, 50mm BX2E10-A2Z1-A2_305x305x50 E10 305 305 50 1.6 160/384 50/120
Minipleat - HEPA panel, 50mm BX2E10-A2Z1-A2_305x610x50 E10 305 610 50 3.1 323/776 50/120
Minipleat - HEPA panel, 50mm BX2E10-A2Z1-A2_610x610x50 E10 610 610 50 6.4 654/1570 50/120
Minipleat - HEPA panel, 50mm BX2E10-A2Z1-A2_762x610x50 E10 762 610 50 8.0 819/1966 50/120
Minipleat - HEPA panel, 50mm BX2E11-A2Z2-A2_305x305x50 E11 305 305 50 1.6 160/384 75/180
Minipleat - HEPA panel, 50mm BX2E11-A2Z2-A2_305x610x50 E11 305 610 50 3.1 323/776 75/180
Minipleat - HEPA panel, 50mm BX2E11-A2Z2-A2_610x610x50 E11 610 610 50 6.4 654/1570 75/180
Minipleat - HEPA panel, 50mm BX2E11-A2Z2-A2_762x610x50 E11 762 610 50 8.0 819/1966 75/180
Minipleat - HEPA panel, 50mm BX2E12-A2Z3-A2_305x305x50 E12 305 305 50 1.6 160/384 100/240
Minipleat - HEPA panel, 50mm BX2E12-A2Z3-A2_305x610x50 E12 305 610 50 3.1 323/776 100/240
Minipleat - HEPA panel, 50mm BX2E12-A2Z3-A2_610x610x50 E12 610 610 50 6.4 654/1570 100/240
Minipleat - HEPA panel, 50mm BX2E12-A2Z3-A2_762x610x50 E12 762 610 50 8.0 819/1966 100/240
Minipleat - HEPA panel, 50mm BX2H13-A2Z4-A2_305x305x50 H13 305 305 50 1.6 160/384 125/249
Minipleat - HEPA panel, 50mm BX2H13-A2Z4-A2_305x610x50 H13 305 610 50 3.1 323/776 125/249
Minipleat - HEPA panel, 50mm BX2H13-A2Z4-A2_610x610x50 H13 610 610 50 6.4 654/1570 125/249
Minipleat - HEPA panel, 50mm BX2H13-A2Z4-A2_762x610x50 H13 762 610 50 8.0 819/1966 125/249
Minipleat - HEPA panel, 50mm BX2H14-A2Z5-A2_305x305x50 H14 305 305 50 1.6 160/384 150/249
Minipleat - HEPA panel, 50mm BX2H14-A2Z5-A2_305x610x50 H14 305 610 50 3.1 323/776 150/249
Minipleat - HEPA panel, 50mm BX2H14-A2Z5-A2_610x610x50 H14 610 610 50 6.4 654/1570 150/249
Minipleat - HEPA panel, 50mm BX2H14-A2Z5-A2_762x610x50 H14 762 610 50 8.0 819/1966 150/249

Alu Minipleat – HEPA Filter, foamed endless seal, depth 65mm

Article name Art code SAP Filter Class DIN 1822 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
Minipleat - HEPA panel, 65mm BX2E10-A3Z1-A2_305x305x65 E10 305 305 65 1.6 160/384 40/96
Minipleat - HEPA panel, 65mm BX2E10-A3Z1-A2_305x610x65 E10 305 610 65 3.1 323/776 40/96
Minipleat - HEPA panel, 65mm BX2E10-A3Z1-A2_610x610x65 E10 610 610 65 6.4 654/1570 40/96
Minipleat - HEPA panel, 65mm BX2E10-A3Z1-A2_762x610x65 E10 762 610 65 8.0 819/1966 40/96
Minipleat - HEPA panel, 65mm BX2E11-A3Z2-A2_305x305x65 E11 305 305 65 1.6 160/384 65/156
Minipleat - HEPA panel, 65mm BX2E11-A3Z2-A2_305x610x65 E11 305 610 65 3.1 323/776 65/156
Minipleat - HEPA panel, 65mm BX2E11-A3Z2-A2_610x610x65 E11 610 610 65 6.4 654/1570 65/156
Minipleat - HEPA panel, 65mm BX2E11-A3Z2-A2_762x610x65 E11 762 610 65 8.0 819/1966 65/156
Minipleat - HEPA panel, 65mm BX2E12-A3Z3-A2_305x305x65 E12 305 305 65 1.6 160/384 90/216
Minipleat - HEPA panel, 65mm BX2E12-A3Z3-A2_305x610x65 E12 305 610 65 3.1 323/776 90/216
Minipleat - HEPA panel, 65mm BX2E12-A3Z3-A2_610x610x65 E12 610 610 65 6.4 654/1570 90/216
Minipleat - HEPA panel, 65mm BX2E12-A3Z3-A2_762x610x65 E12 762 610 65 8.0 819/1966 90/216
Minipleat - HEPA panel, 65mm BX2H13-A3Z4-A2_305x305x65 H13 305 305 65 1.6 160/384 115/249
Minipleat - HEPA panel, 65mm BX2H13-A3Z4-A2_305x610x65 H13 305 610 65 3.1 323/776 115/249
Minipleat - HEPA panel, 65mm BX2H13-A3Z4-A2_610x610x65 H13 610 610 65 6.4 654/1570 115/249
Minipleat - HEPA panel, 65mm BX2H13-A3Z4-A2_762x610x65 H13 762 610 65 8.0 819/1966 115/249
Minipleat - HEPA panel, 65mm BX2H14-A3Z5-A2_305x305x65 H14 305 305 65 1.6 160/384 140/249
Minipleat - HEPA panel, 65mm BX2H14-A3Z5-A2_305x610x65 H14 305 610 65 3.1 323/776 140/249
Minipleat - HEPA panel, 65mm BX2H14-A3Z5-A2_610x610x65 H14 610 610 65 6.4 654/1570 140/249
Minipleat - HEPA panel, 65mm BX2H14-A3Z5-A2_762x610x65 H14 762 610 65 8.0 819/1966 140/249

Alu Minipleat – HEPA Filter, foamed endless seal, depth 69mm

Article name Art code SAP Filter Class DIN 1822 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
Minipleat - HEPA panel, 69mm BX2E10-A4Z1-A2_305x305x69 E10 305 305 69 1.6 160/384 35/84
Minipleat - HEPA panel, 69mm BX2E10-A4Z1-A2_305x610x69 E10 305 610 69 3.1 323/776 35/84
Minipleat - HEPA panel, 69mm BX2E10-A4Z1-A2_610x610x69 E10 610 610 69 6.4 654/1570 35/84
Minipleat - HEPA panel, 69mm BX2E10-A4Z1-A2_762x610x69 E10 762 610 69 8.0 819/1966 35/84
Minipleat - HEPA panel, 69mm BX2E11-A4Z2-A2_305x305x69 E11 305 305 69 1.6 160/384 60/144
Minipleat - HEPA panel, 69mm BX2E11-A4Z2-A2_305x610x69 E11 305 610 69 3.1 323/776 60/144
Minipleat - HEPA panel, 69mm BX2E11-A4Z2-A2_610x610x69 E11 610 610 69 6.4 654/1570 60/144
Minipleat - HEPA panel, 69mm BX2E11-A4Z2-A2_762x610x69 E11 762 610 69 8.0 819/1966 60/144
Minipleat - HEPA panel, 69mm BX2E12-A4Z3-A2_305x305x69 E12 305 305 69 1.6 160/384 85/204
Minipleat - HEPA panel, 69mm BX2E12-A4Z3-A2_305x610x69 E12 305 610 69 3.1 323/776 85/204
Minipleat - HEPA panel, 69mm BX2E12-A4Z3-A2_610x610x69 E12 610 610 69 6.4 654/1570 85/204
Minipleat - HEPA panel, 69mm BX2E12-A4Z3-A2_762x610x69 E12 762 610 69 8.0 819/1966 85/204
Minipleat - HEPA panel, 69mm BX2H13-A4Z4-A2_305x305x69 H13 305 305 69 1.6 160/384 110/249
Minipleat - HEPA panel, 69mm BX2H13-A4Z4-A2_305x610x69 H13 305 610 69 3.1 323/776 110/249
Minipleat - HEPA panel, 69mm BX2H13-A4Z4-A2_610x610x69 H13 610 610 69 6.4 654/1570 110/249
Minipleat - HEPA panel, 69mm BX2H13-A4Z4-A2_762x610x69 H13 762 610 69 8.0 819/1966 110/249
Minipleat - HEPA panel, 69mm BX2H14-A4Z5-A2_305x305x69 H14 305 305 69 1.6 160/384 135/249
Minipleat - HEPA panel, 69mm BX2H14-A4Z5-A2_305x610x69 H14 305 610 69 3.1 323/776 135/249
Minipleat - HEPA panel, 69mm BX2H14-A4Z5-A2_610x610x69 H14 610 610 69 6.4 654/1570 135/249
Minipleat - HEPA panel, 69mm BX2H14-A4Z5-A2_762x610x69 H14 762 610 69 8.0 819/1966 135/249

Alu Minipleat – HEPA Filter, foamed endless seal, depth 80mm

Article name Art code SAP Filter Class DIN 1822 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
Minipleat - HEPA panel, 80mm BX2E10-A5Z1-A2_305x305x80 E10 305 305 80 1.6 160/384 30/72
Minipleat - HEPA panel, 80mm BX2E10-A5Z1-A2_305x610x80 E10 305 610 80 3.1 323/776 30/72
Minipleat - HEPA panel, 80mm BX2E10-A5Z1-A2_610x610x80 E10 610 610 80 6.4 654/1570 30/72
Minipleat - HEPA panel, 80mm BX2E10-A5Z1-A2_762x610x80 E10 762 610 80 8.0 819/1966 30/72
Minipleat - HEPA panel, 80mm BX2E11-A5Z2-A2_305x305x80 E11 305 305 80 1.6 160/384 55/132
Minipleat - HEPA panel, 80mm BX2E11-A5Z2-A2_305x610x80 E11 305 610 80 3.1 323/776 55/132
Minipleat - HEPA panel, 80mm BX2E11-A5Z2-A2_610x610x80 E11 610 610 80 6.4 654/1570 55/132
Minipleat - HEPA panel, 80mm BX2E11-A5Z2-A2_762x610x80 E11 762 610 80 8.0 819/1966 55/132
Minipleat - HEPA panel, 80mm BX2E12-A5Z3-A2_305x305x80 E12 305 305 80 1.6 160/384 80/192
Minipleat - HEPA panel, 80mm BX2E12-A5Z3-A2_305x610x80 E12 305 610 80 3.1 323/776 80/192
Minipleat - HEPA panel, 80mm BX2E12-A5Z3-A2_610x610x80 E12 610 610 80 6.4 654/1570 80/192
Minipleat - HEPA panel, 80mm BX2E12-A5Z3-A2_762x610x80 E12 762 610 80 8.0 819/1966 80/192
Minipleat - HEPA panel, 80mm BX2H13-A5Z4-A2_305x305x80 H13 305 305 80 1.6 160/384 105/249
Minipleat - HEPA panel, 80mm BX2H13-A5Z4-A2_305x610x80 H13 305 610 80 3.1 323/776 105/249
Minipleat - HEPA panel, 80mm BX2H13-A5Z4-A2_610x610x80 H13 610 610 80 6.4 654/1570 105/249
Minipleat - HEPA panel, 80mm BX2H13-A5Z4-A2_762x610x80 H13 762 610 80 8.0 819/1966 105/249
Minipleat - HEPA panel, 80mm BX2H14-A5Z5-A2_305x305x80 H14 305 305 80 1.6 160/384 130/249
Minipleat - HEPA panel, 80mm BX2H14-A5Z5-A2_305x610x80 H14 305 610 80 3.1 323/776 130/249
Minipleat - HEPA panel, 80mm BX2H14-A5Z5-A2_610x610x80 H14 610 610 80 6.4 654/1570 130/249
Minipleat - HEPA panel, 80mm BX2H14-A5Z5-A2_762x610x80 H14 762 610 80 8.0 819/1966 130/249
  • Schwebstofffilter

Alu Minipleat – HEPA Filter, Gel sealing, depth 93mm

Article name Art code SAP Filter Class DIN 1822 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_484x484x93 H13 484 484 93 8,8 345/829 110/249
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_500x500x93 H13 500 500 93 9,5 374/890 110/249
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_610x610x93 H13 610 610 93 14,5 573/1374 110/249
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_630x630x93 H13 630 630 93 15,4 614/1473 110/249
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_762x610x93 H13 762 610 93 18 727/1745 110/249
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_915x610x93 H13 915 610 93 21,8 882/2117 110/249
Minipleat - HEPA panel, 93mm, gel BX2H13-B1Z4-C1_1220x610x93 H13 1220 610 93 29,1 1192/2860 110/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_484x484x93 H14 484 484 93 8,8 345/829 180/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_500x500x93 H14 500 500 93 9,5 374/890 180/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_610x610x93 H14 610 610 93 14,5 573/1374 180/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_630x630x93 H14 630 630 93 15,4 614/1473 180/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_762x610x93 H14 762 610 93 18 727/1745 180/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_915x610x93 H14 915 610 93 21,8 882/2117 180/249
Minipleat - HEPA panel, 93mm, gel BX2H14-B1Z5-C1_1220x610x93 H14 1220 610 93 29,1 1192/2860 180/249
  • Schwebstofffilter

Box type HEPA Filter, E10 – H13, plastic housing, V shaped Minipleat packs

Article Art code SAP Filter Class DIN 1822 Frame material Gasket (yes / no) Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa) No. of Vbanks
Box type V HEPA BX5E10-A3Z1-A6_287x592x292 E10 Plastic yes 287 592 292 8,7 1700 170/600 2V
Box type V HEPA BX5E10-A1Z1-A6_592x287x292 E10 Plastic yes 592 287 292 7,8 1700 170/600 4V
Box type V HEPA BX5E10-A1Z1-A6_592x592x292 E10 Plastic yes 592 592 292 17,6 3400 170/600 4V
Box type V HEPA BX5E11-A3Z2-A6_287x592x292 E11 Plastic yes 287 592 292 8,7 1700 200/600 2V
Box type V HEPA BX5E11-A1Z2-A6_592x287x292 E11 Plastic yes 592 287 292 7,8 1700 200/600 4V
Box type V HEPA BX5E11-A1Z2-A6_592x592x292 E11 Plastic yes 592 592 292 17,6 3400 200/600 4V
Box type V HEPA BX5E12-A3Z3-A6_287x592x292 E12 Plastic yes 287 592 292 8,7 1700 280/600 2V
Box type V HEPA BX5E12-A1Z3-A6_592x287x292 E12 Plastic yes 592 287 292 7,8 1700 280/600 4V
Box type V HEPA BX5E12-A1Z3-A6_592x592x292 E12 Plastic yes 592 592 292 17,6 3400 280/600 4V
Box type V HEPA BX5H13-A7Z4-A6_592x287x292 H13 Plastic yes 592 287 292 7,8 1700 320/600 4V
Box type V HEPA BX5H13-A7Z4-A6_592x592x292 H13 Plastic yes 592 592 292 17,6 3400 320/600 4V
Box type V HEPA BX5H14-A7Z5-A6_592x287x292 H14 Plastic yes 592 287 292 7,8 1700 360/600 4V
Box type V HEPA BX5H14-A7Z5-A6_592x592x292 H14 Plastic yes 592 592 292 17,6 3400 360/600 4V

Box type EPA and HEPA Filter with galvanised metal sheet frame, with gasket, no protection grid, in depths of 150mm, 220mm, 292mm

Article name Art code SAP Filter Class DIN 1822 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa) Pressure Drop (Pa)
HEPA box type 150mm BX4E10-M3Z1-A1_305x305x150 E10 305 305 150 1,8 234/360 110/165 350/500
HEPA box type 150mm BX4E10-M3Z1-A1_305x610x150 E10 305 610 150 3,7 510/720 110/165 350/500
HEPA box type 150mm BX4E10-M3Z1-A1_610x610x150 E10 610 610 150 8,3 1080/1680 110/165 350/500
HEPA box type 150mm BX4E10-M3Z1-A1_762x610x150 E10 762 610 150 10,5 2002/2160 110/165 350/500
HEPA box type 150mm BX4E11-M3Z2-A1_305x305x150 E11 305 305 150 1,8 234/360 130/165 350/500
HEPA box type 150mm BX4E11-M3Z2-A1_305x610x150 E11 305 610 150 3,7 510/720 130/165 350/500
HEPA box type 150mm BX4E11-M3Z2-A1_610x610x150 E11 610 610 150 8,3 1080/1680 130/165 350/500
HEPA box type 150mm BX4E11-M3Z2-A1_762x610x150 E11 762 610 150 10,5 2002/2160 130/165 350/500
HEPA box type 150mm BX4E12-M3Z3-A1_305x305x150 E12 305 305 150 1,8 234/360 150/165 350/500
HEPA box type 150mm BX4E12-M3Z3-A1_305x610x150 E12 305 610 150 3,7 510/720 150/165 350/500
HEPA box type 150mm BX4E12-M3Z3-A1_610x610x150 E12 610 610 150 8,3 1080/1680 150/165 350/500
HEPA box type 150mm BX4E12-M3Z3-A1_762x610x150 E12 762 610 150 10,5 2002/2160 150/165 350/500
HEPA box type 150mm BX4H13-M3Z4-A1_305x305x150 H13 305 305 150 1,8 234/360 180/210 500
HEPA box type 150mm BX4H13-M3Z4-A1_305x610x150 H13 305 610 150 3,7 510/720 180/210 500
HEPA box type 150mm BX4H13-M3Z4-A1_610x610x150 H13 610 610 150 8,3 1080/1680 180/210 500
HEPA box type 150mm BX4H13-M3Z4-A1_762x610x150 H13 762 610 150 10,5 2002/2160 180/210 500
HEPA box type 150mm BX4H14-M3Z5-A1_305x305x150 H14 305 305 150 1,8 234/360 200/230 500
HEPA box type 150mm BX4H14-M3Z5-A1_305x610x150 H14 305 610 150 3,7 510/720 200/230 500
HEPA box type 150mm BX4H14-M3Z5-A1_610x610x150 H14 610 610 150 8,3 1080/1680 200/230 500
HEPA box type 150mm BX4H14-M3Z5-A1_762x610x150 H14 762 610 150 10,5 2002/2160 200/230 500

HEPA box type 220mm BX4E10-M2Z1-A1_305x305x220 E10 305 305 220 2,8 354/456 110/165 350/500
HEPA box type 220mm BX4E10-M2Z1-A1_305x610x220 E10 305 610 220 5,9 752/1002 110/165 350/500
HEPA box type 220mm BX4E10-M2Z1-A1_610x610x220 E10 610 610 220 13,2 1586/2112 110/165 350/500
HEPA box type 220mm BX4E10-M2Z1-A1_762x610x220 E10 762 610 220 16,7 2160/2670 110/165 350/500
HEPA box type 220mm BX4E11-M2Z2-A1_305x305x220 E11 305 305 220 2,8 354/456 130/165 350/500
HEPA box type 220mm BX4E11-M2Z2-A1_305x610x220 E11 305 610 220 5,9 752/1002 130/165 350/500
HEPA box type 220mm BX4E11-M2Z2-A1_610x610x220 E11 610 610 220 13,2 1586/2112 130/165 350/500
HEPA box type 220mm BX4E11-M2Z2-A1_762x610x220 E11 762 610 220 16,7 2160/2670 130/165 350/500
HEPA box type 220mm BX4E12-M2Z3-A1_305x305x220 E12 305 305 220 2,8 354/456 150/165 350/500
HEPA box type 220mm BX4E12-M2Z3-A1_305x610x220 E12 305 610 220 5,9 752/1002 150/165 350/500
HEPA box type 220mm BX4E12-M2Z3-A1_610x610x220 E12 610 610 220 13,2 1586/2112 150/165 350/500
HEPA box type 220mm BX4E12-M2Z3-A1_762x610x220 E12 762 610 220 16,7 2160/2670 150/165 350/500
HEPA box type 220mm BX4H13-M2Z4-A1_305x305x220 H13 305 305 220 2,8 354/456 250/250 500/500
HEPA box type 220mm BX4H13-M2Z4-A1_305x610x220 H13 305 610 220 5,9 752/1002 250/250 500/500
HEPA box type 220mm BX4H13-M2Z4-A1_610x610x220 H13 610 610 220 13,2 1586/2112 250/250 500/500
HEPA box type 220mm BX4H13-M2Z4-A1_762x610x220 H13 762 610 220 16,7 2160/2670 250/250 500/500
HEPA box type 220mm BX4H14-M2Z5-A1_305x305x220 H14 305 305 220 2,8 354/456 250/250 500/500
HEPA box type 220mm BX4H14-M2Z5-A1_305x610x220 H14 305 610 220 5,9 752/1002 250/250 500/500
HEPA box type 220mm BX4H14-M2Z5-A1_610x610x220 H14 610 610 220 13,2 1586/2112 250/250 500/500
HEPA box type 220mm BX4H14-M2Z5-A1_762x610x220 H14 762 610 220 16,7 2160/2670 250/250 500/500

HEPA box type 292mm BX4E10-M1Z1-A1_305x305x292 E10 305 305 292 3,9 384/600 110/165 350/500
HEPA box type 292mm BX4E10-M1Z1-A1_305x610x292 E10 305 610 292 8,2 900/1320 110/165 350/500
HEPA box type 292mm BX4E10-M1Z1-A1_610x610x292 E10 610 610 292 18,1 1920/3000 110/165 350/500
HEPA box type 292mm BX4E10-M1Z1-A1_762x610x292 E10 762 610 292 23 2400/3600 110/165 350/500
HEPA box type 292mm BX4E11-M1Z2-A1_305x305x292 E11 305 305 292 3,9 384/600 130/165 350/500
HEPA box type 292mm BX4E11-M1Z2-A1_305x610x292 E11 305 610 292 8,2 900/1320 130/165 350/500
HEPA box type 292mm BX4E11-M1Z2-A1_610x610x292 E11 610 610 292 18,1 1920/3000 130/165 350/500
HEPA box type 292mm BX4E11-M1Z2-A1_762x610x292 E11 762 610 292 23 2400/3600 130/165 350/500
HEPA box type 292mm BX4E12-M1Z3-A1_305x305x292 E12 305 305 292 3,9 384/600 150/165 350/500
HEPA box type 292mm BX4E12-M1Z3-A1_305x610x292 E12 305 610 292 8,2 900/1320 150/165 350/500
HEPA box type 292mm BX4E12-M1Z3-A1_610x610x292 E12 610 610 292 18,1 1920/3000 150/165 350/500
HEPA box type 292mm BX4E12-M1Z3-A1_762x610x292 E12 762 610 292 23 2400/3600 150/165 350/500
HEPA box type 292mm BX4H13-M1Z4-A1_305x305x292 H13 305 305 292 3,9 384/600 250/250 500/500
HEPA box type 292mm BX4H13-M1Z4-A1_305x610x292 H13 305 610 292 8,2 900/1320 250/250 500/500
HEPA box type 292mm BX4H13-M1Z4-A1_610x610x292 H13 610 610 292 18,1 1920/3000 250/250 500/500
HEPA box type 292mm BX4H13-M1Z4-A1_762x610x292 H13 762 610 292 23 2400/3600 250/250 500/500
HEPA box type 292mm BX4H14-M1Z5-A1_305x305x292 H14 305 305 292 3,9 384/600 250/250 500/500
HEPA box type 292mm BX4H14-M1Z5-A1_305x610x292 H14 305 610 292 8,2 900/1320 250/250 500/500
HEPA box type 292mm BX4H14-M1Z5-A1_610x610x292 H14 610 610 292 18,1 1920/3000 250/250 500/500
HEPA box type 292mm BX4H14-M1Z5-A1_762x610x292 H14 762 610 292 23 2400/3600 250/250 500/500

We look forward to your request.

  1. You are here:
  2. Home
  3. Products
  4. HEPA Filter
