Aktivkohlefilter

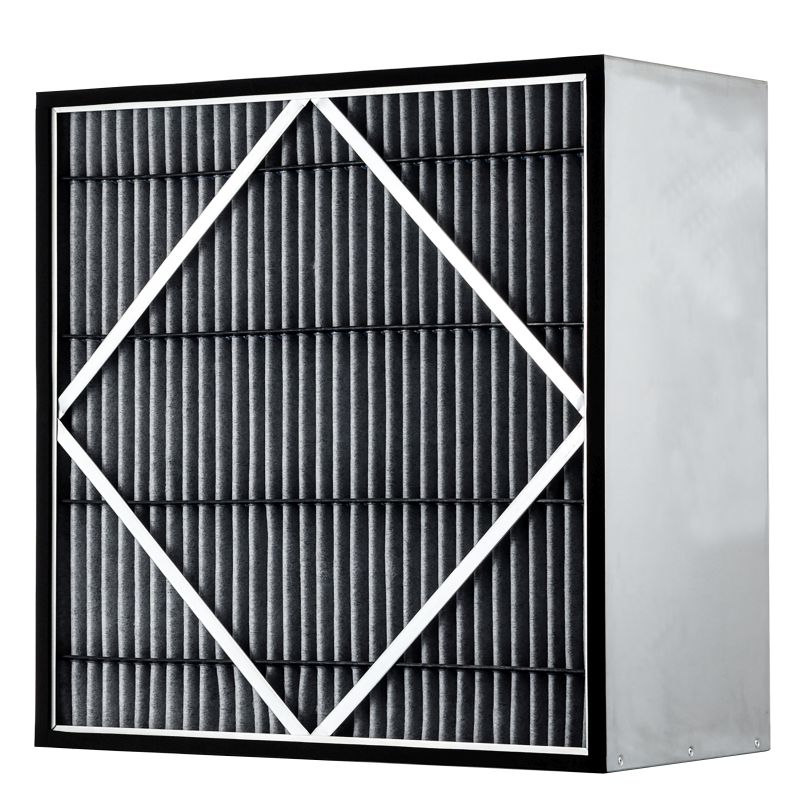

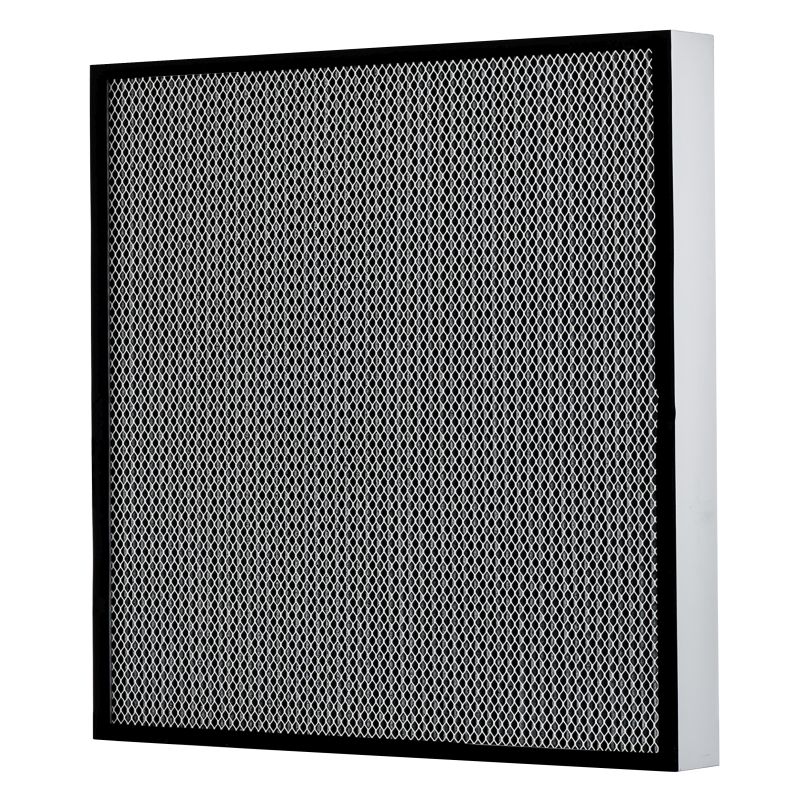

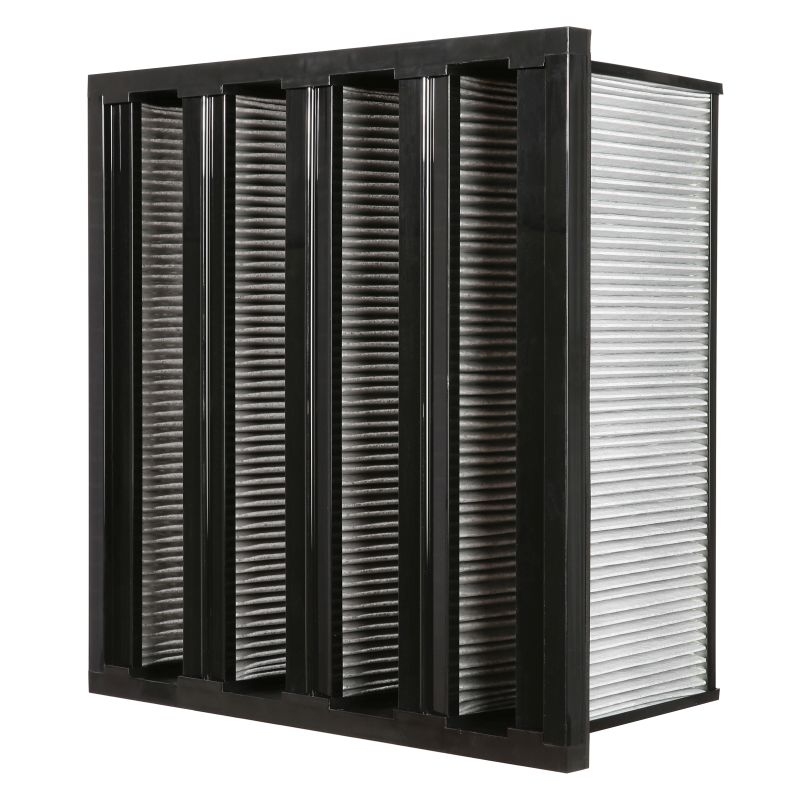

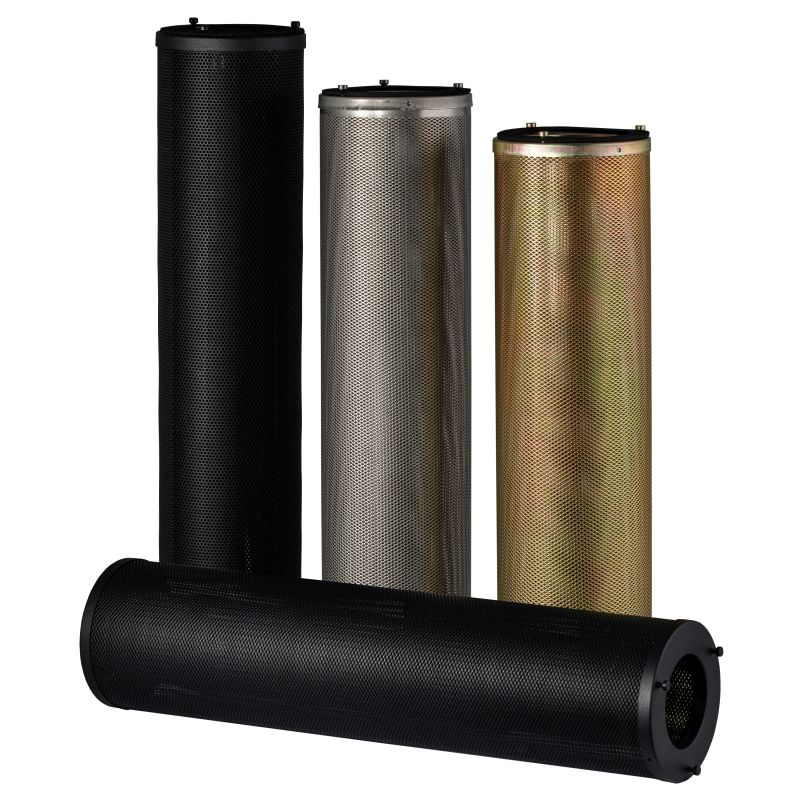

Wetzel Aktivkohlefilter reduzieren die Belastung durch Umweltschadstoffe und schlechte Gerüche. Sie werden zum Schutz von Menschen und sensiblen Produkten zum Beispiel in Flughäfen, Hotels in raumlufttechnischen Anlagen eingesetzt.
Art code SAP | Material | Width (mm) | Height (mm) | Depth (mm) | Carbon weight (kg) | Airflow (m³/h)Airflow (m³/h) |
Pressure Drop (Pa) |
---|---|---|---|---|---|---|---|
AC1-G1A1_145x87x250 | Galvanized steel | 145 | 87 | 250 | 1,24 | 85 | 160 |
AC1-G1A1_145x87x450 | Galvanized steel | 145 | 87 | 450 | 2,24 | 150 | 160 |
AC1-G1A1_145x87x600 | Galvanized steel | 145 | 87 | 600 | 3 | 200 | 160 |
AC1-G1A1_145x109x250 | Galvanized steel | 145 | 109 | 250 | 0,82 | 85 | 160 |
AC1-G1A1_145x109x450 | Galvanized steel | 145 | 109 | 450 | 1,45 | 150 | 160 |
AC1-G1A1_145x109x600 | Galvanized steel | 145 | 109 | 600 | 1,93 | 200 | 160 |
AC1-S1A1_145x87x250 | Stainless steel | 145 | 87 | 250 | 1,24 | 85 | 160 |
AC1-S1A1_145x87x450 | Stainless steel | 145 | 87 | 450 | 2,24 | 150 | 160 |
AC1-S1A1_145x87x600 | Stainless steel | 145 | 87 | 600 | 3 | 200 | 160 |
AC1-S1A1_145x109x250 | Stainless steel | 145 | 109 | 250 | 0,82 | 85 | 160 |
AC1-S1A1_145x109x450 | Stainless steel | 145 | 109 | 450 | 1,45 | 150 | 160 |
AC1-S1A1_145x109x600 | Stainless steel | 145 | 109 | 600 | 1,93 | 200 | 160 |
AC1-G3A1_145x87x250 | Plastic | 145 | 87 | 250 | 1,2 | 85 | 160 |
AC1-G3A1_145x87x450 | Plastic | 145 | 87 | 450 | 2,15 | 150 | 160 |
AC1-G3A1_145x87x600 | Plastic | 145 | 87 | 600 | 2,9 | 200 | 160 |
