Pocket Filter
All pocket filters are made of filter media with unbreakable synthetic fibres.
All pocket filters are supplied with the desired spacer technology and can be supplied in differentpocket lengths.
All pocket filters are available in all filter classes with front frames made of galvanised sheet steel, aluminium or plastic. The thickness of the front frame can be selected between 21mm and 25mm.
All pocket filters (1/1) are available in all filter classes with 6, 8, 10 pockets, in the filter classes from F7
- F9 the 1/1 variants are also available with 12 pockets.
Seals can be glued or enclosed on request.
Our delivery program comprises filterclasses G3 – F9. All standard and special dimensions are available.
All pocket filters are supplied with the desired spacer technology and can be supplied in differentpocket lengths.
All pocket filters are available in all filter classes with front frames made of galvanised sheet steel, aluminium or plastic. The thickness of the front frame can be selected between 21mm and 25mm.
All pocket filters (1/1) are available in all filter classes with 6, 8, 10 pockets, in the filter classes from F7
- F9 the 1/1 variants are also available with 12 pockets.
Seals can be glued or enclosed on request.
Our delivery program comprises filterclasses G3 – F9. All standard and special dimensions are available.

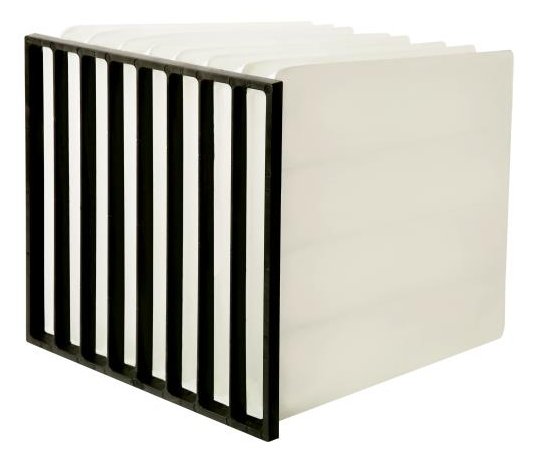

WP filter series, filterclasses M5, M6:

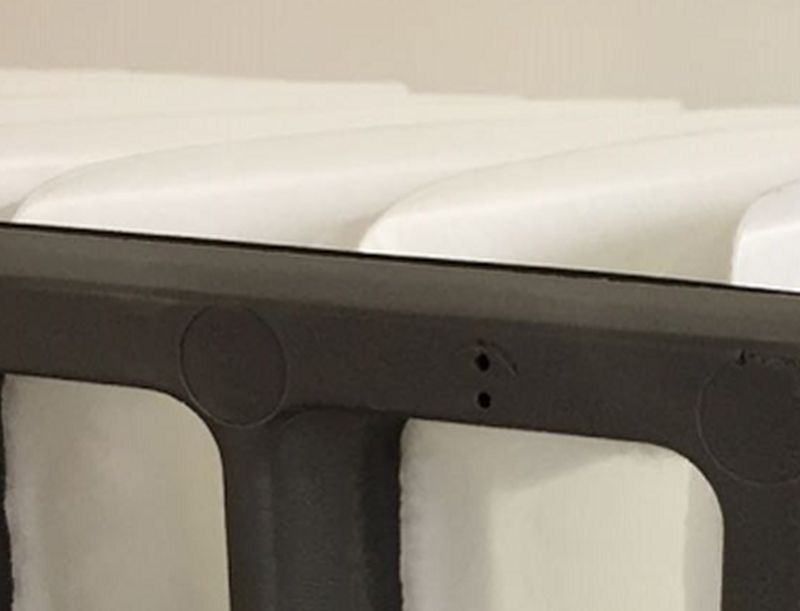

The filter bags are leak-free welded and foamed into the PUR front frame to meet the highest

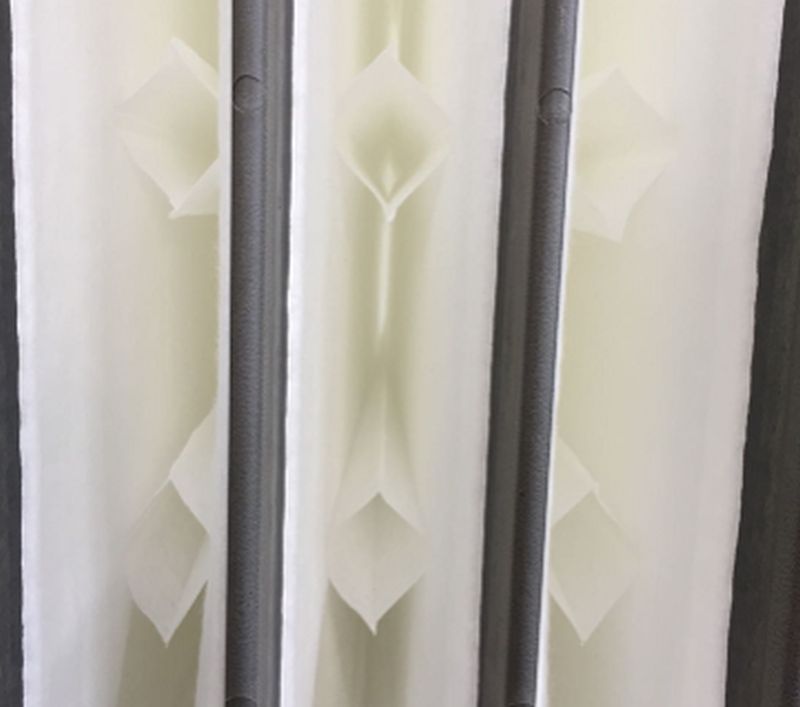

operational safety requirements. Aerodynamic, trapezoidal spacers ensure optimum flow through the
filter bags and very long service lives with low pressure loss.
The entire construction is extremely stable and thus offers maximum functional reliability in operation,
even at high loads of over 5.000 m³/h/filter.
Burst pressure certificate 5.000 Pascal
operational safety requirements. Aerodynamic, trapezoidal spacers ensure optimum flow through the
filter bags and very long service lives with low pressure loss.
The entire construction is extremely stable and thus offers maximum functional reliability in operation,
even at high loads of over 5.000 m³/h/filter.
Burst pressure certificate 5.000 Pascal
| Article | Article name | Filter Class EN779 2012 | Filter Class ISO 16890 | Dimension mm | No. of pockets | Surface Area (m²) | Airflow (m³/h) | Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Pocket Filter | WP 50 1/1 | M5 | ePM10 50% | 592x592x600 | 6 | 4,4 | 4.250 | 52 |
| Pocket Filter | WP 50 1/2 | M5 | ePM10 50% | 289x592x600 | 3 | 2,2 | 2.200 | 52 |
| Pocket Filter | WP 55 1/1 | M5 | ePM10 55% | 592x592x600 | 8 | 5,8 | 4.250 | 69 |
| Pocket Filter | WP 55 1/2 | M5 | ePM10 55% | 289x592x600 | 4 | 2,9 | 2.200 | 69 |
| Pocket Filter | WP 65 1/1 | M6 | ePM10 65% | 592x592x600 | 8 | 5,8 | 4.250 | 83 |
| Pocket Filter | WP 65 1/2 | M6 | ePM10 65% | 289x592x600 | 4 | 2,9 | 2.100 | 83 |
Fine Filter, synthetic, filterclasses M6 – F9
Our multi-layer synthetic fine filter media in M6 to F9 can be delivered with different prefilter media qualities depending on the requirement and applications.
Filter pockets are leakfree welded and installed in plastic or metal frames.
All filters are available in different dimensions and different pocket configurations Class
Filter pockets are leakfree welded and installed in plastic or metal frames.
All filters are available in different dimensions and different pocket configurations Class

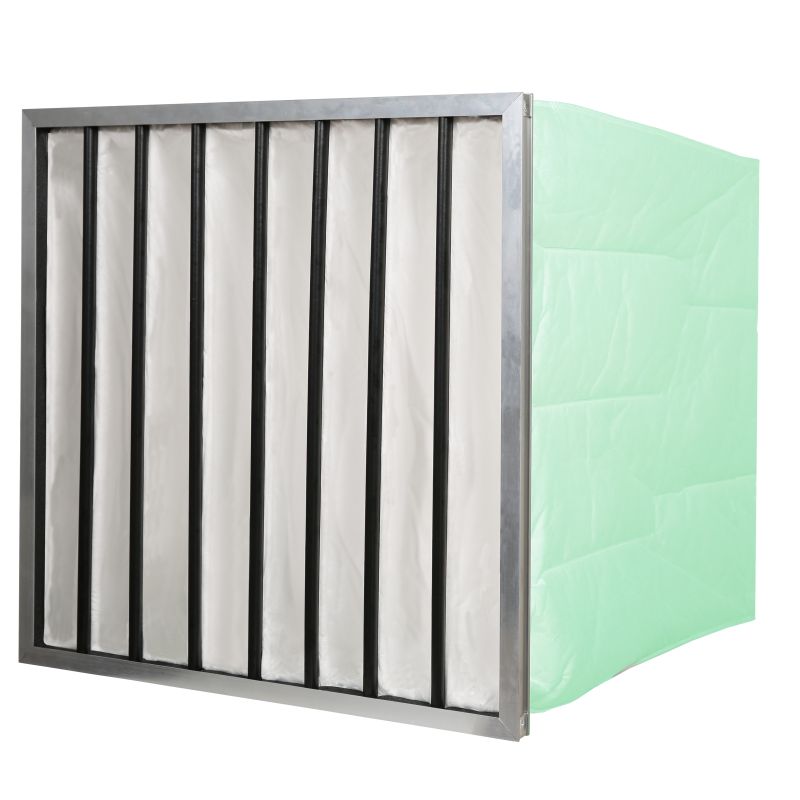

Class M6

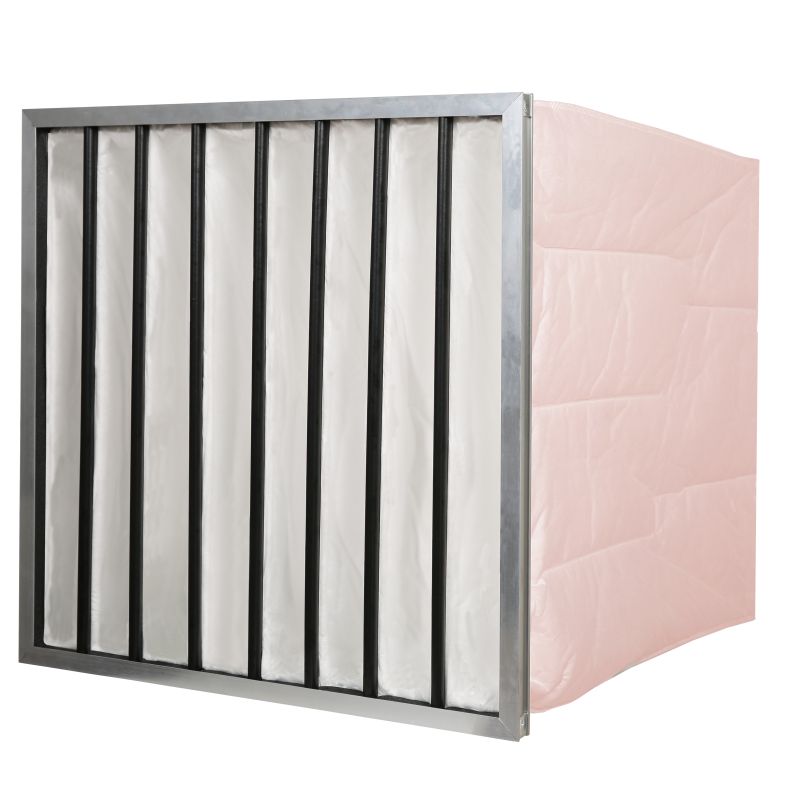

Class F7

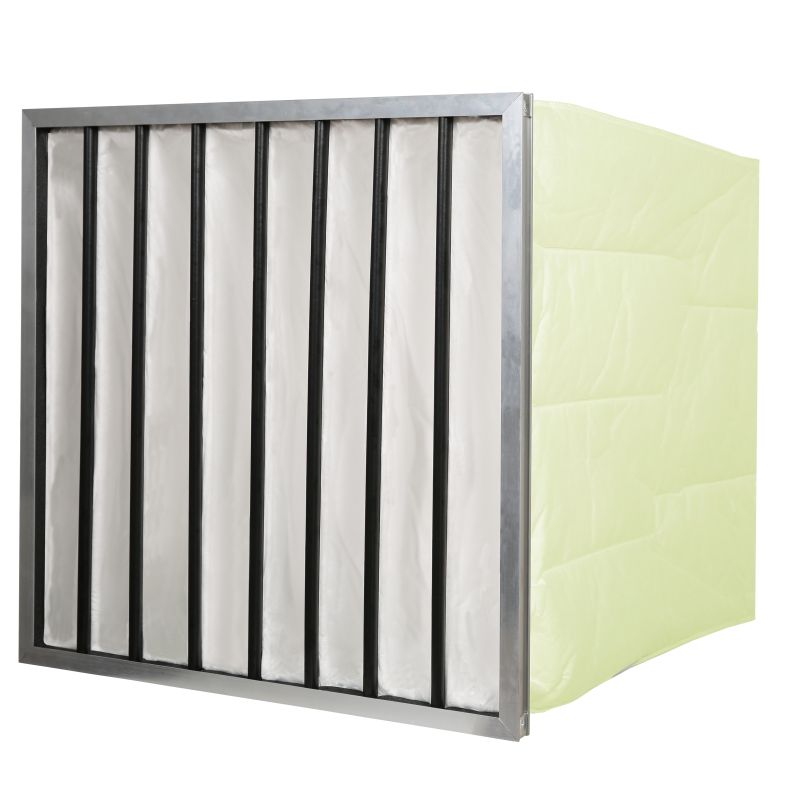

Class F8
Class F9
YEF Filter, filterclasses M6 – F9, synthetic 3 layer medium, welded pockets with integrated spacers. Available in different dimensions and with different number of pockets:
| Article | Article name | Filter Class EN779 2012 | Filter Class ISO 16890 | Dimension mm | No. of pockets | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Pocket Filter | YEF 6 1/1 | M6 | ePM10 65% | 592x592x600 | 8 | 5,8 | 3.400 | 75 |
| Pocket Filter | YEF 6 1/2 | M6 | ePM10 65% | 289x592x600 | 4 | 2,9 | 1.700 | 75 |
| Pocket Filter | YEF 7 1/1 | F7 | ePM10 85% | 592x592x600 | 8 | 5,8 | 3.400 | 90 |
| Pocket Filter | YEF 7 1/2 | F7 | ePM10 85% | 289x592x600 | 4 | 2,9 | 1.700 | 90 |
| Pocket Filter | YEF 8 1/1 | F8 | ePM1 65% | 592x592x600 | 8 | 5,8 | 3.400 | 115 |
| Pocket Filter | YEF 8 1/2 | F8 | ePM1 65% | 289x592x600 | 4 | 2,9 | 1.700 | 115 |
| Pocket Filter | YEF 9 1/1 | F9 | ePM1 70% | 592x592x600 | 8 | 5,8 | 3.400 | 125 |
| Pocket Filter | YEF 9 1/2 | F9 | ePM1 70% | 289x592x600 | 4 | 2,9 | 1.700 | 125 |
W Filter, filterclassess M6 – F9, synthetic 3 layer medium with very strong prefilter layer, welded pockets with integrated spacers. Available in different dimensions and different number of pockets:
| Article | Article name | Filter Class EN779 2012 | Filter Class ISO 16890 | Dimension mm | No. Of pockets | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Pocket Filter | W60 1/1 | M6 | ePM10 65% | 592x592x600 | 8 | 5,8 | 3.400 | 80 |
| Pocket Filter | W60 1/2 | M6 | ePM10 65% | 289x592x600 | 4 | 2,9 | 1.700 | 80 |
| Pocket Filter | W70 1/1 | F7 | ePM10 85% | 592x592x600 | 8 | 5,8 | 3.400 | 95 |
| Pocket Filter | W70 1/2 | F7 | ePM10 85% | 289x592x600 | 4 | 2,9 | 1.700 | 95 |
| Pocket Filter | W80 1/1 | F8 | ePM1 65% | 592x592x600 | 8 | 5,8 | 3.400 | 123 |
| Pocket Filter | W80 1/2 | F8 | ePM1 65% | 289x592x600 | 4 | 2,9 | 1.700 | 123 |
| Pocket Filter | W90 1/1 | F9 | ePM1 70% | 592x592x600 | 8 | 5,8 | 3.400 | 135 |
| Pocket Filter | W90 1/2 | F9 | ePM1 70% | 289x592x600 | 4 | 2,9 | 1.700 | 135 |

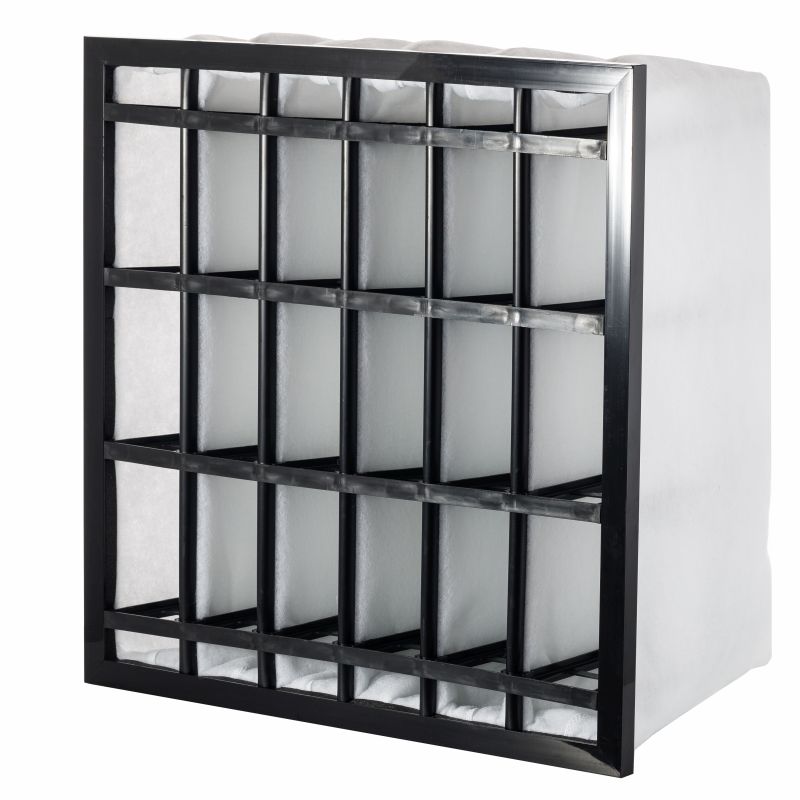

Reverse flow pocket filter V45R:
Allows installation from the raw air side in combination with downstream filters and is flowed from the outside to the inside. The V45R is used in particular as a pre-filter for turbomachinery, as its drainage properties make it ideal for separating water droplets and salt particles, and its stable support construction ensures very high functional reliability.
| Article | Article name | Filter Class EN779 2012 | Filter Class ISO 16890 | Dimension mm | No. of pockets | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Pocket Filter | V 45 R 1/1 | G4 | ISO coarse 70% | 592x592x300 | 6 | 2,2 | 3.400 | 53 |
| Pocket Filter | V 50 R 1/1 | M5 | ISO coarse 90% | 592x592x300 | 6 | 2,2 | 3.400 | 56 |
